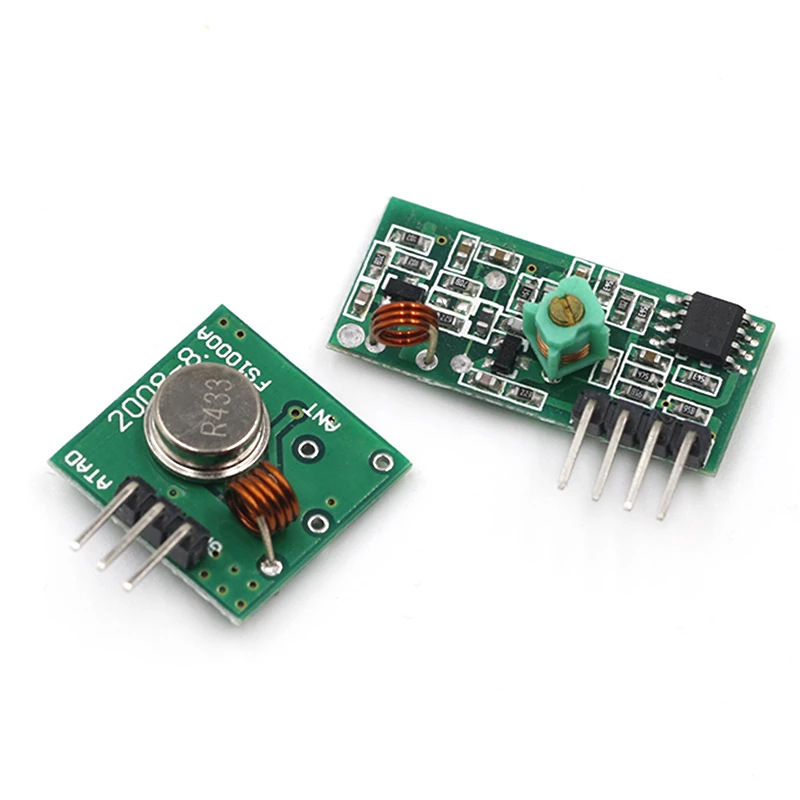

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz - Image 2

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz - Image 3

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz - Image 4

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz - Image 5

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz - Image 6

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz - Image 7

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz - Image 8

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz - Image 9

Wireless Receiver Module / Wireless Transmitter Module 433 MHz / 315 MHz

$0.42 – $0.77

Product Model

SKU: N/A Category: Wireless Receiver Module

Delivery:

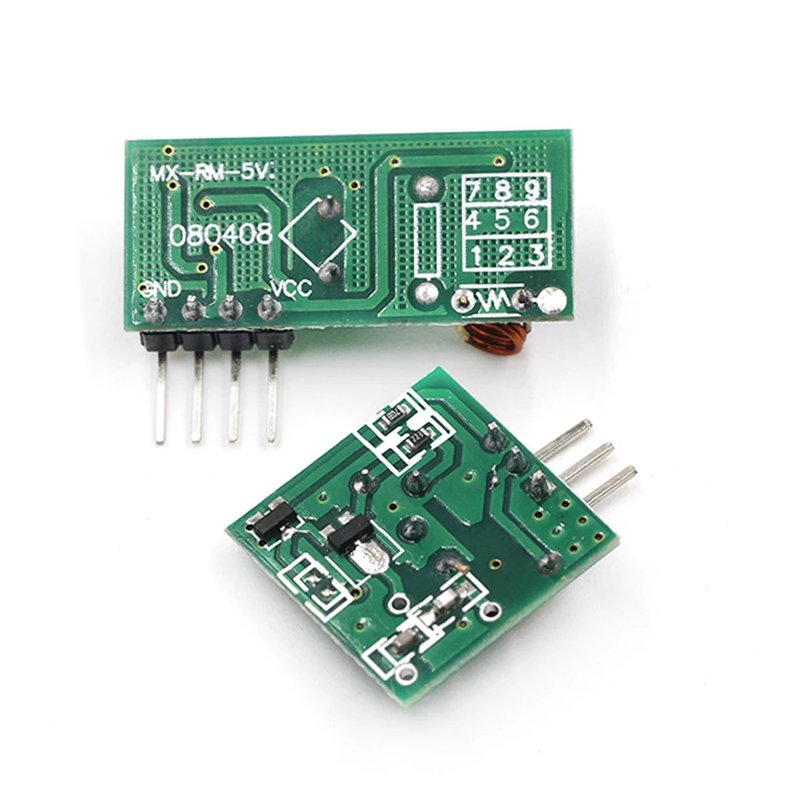

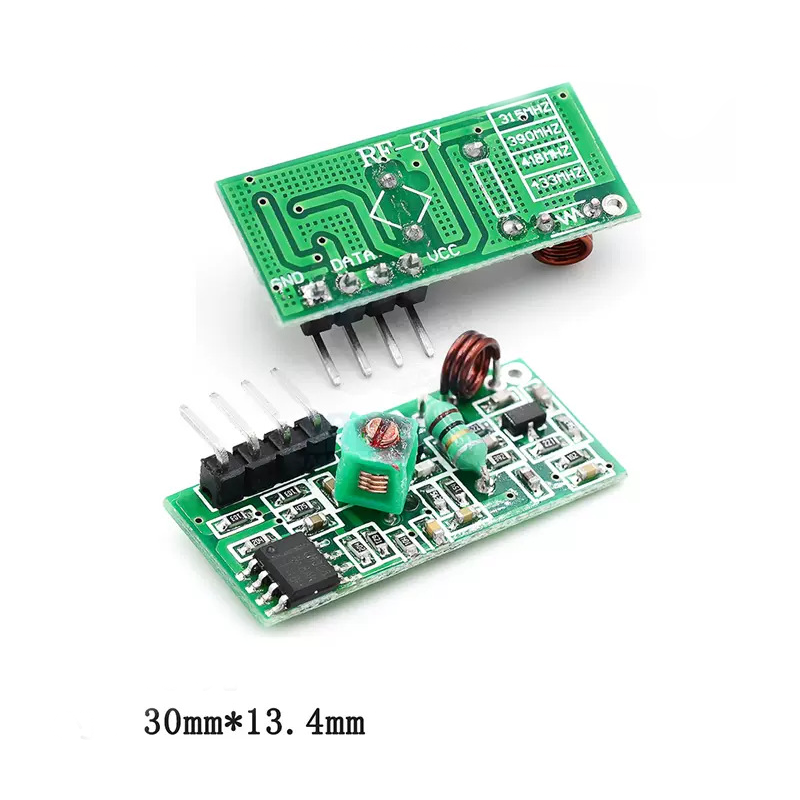

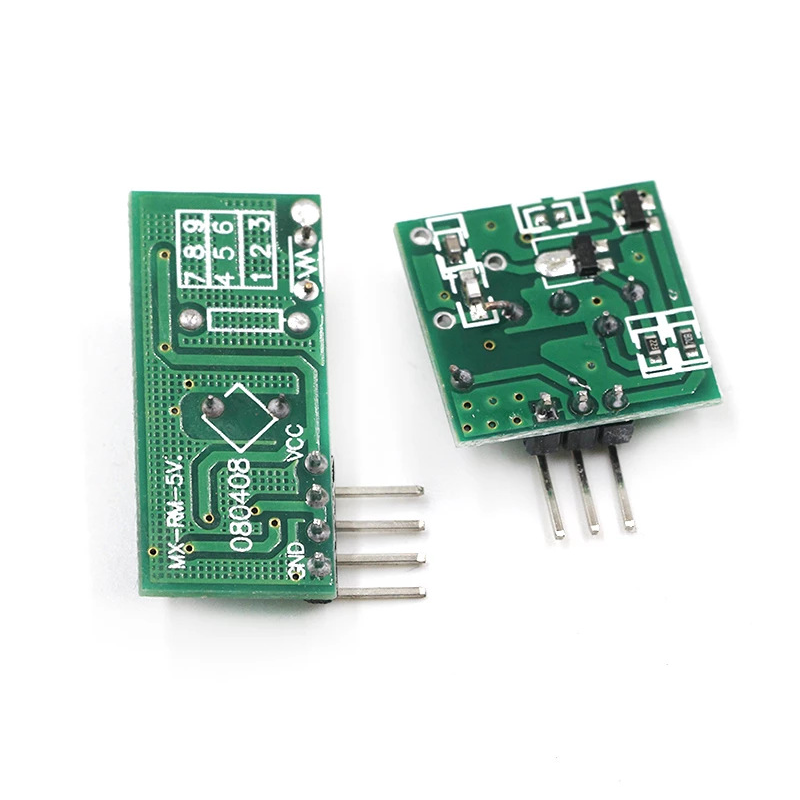

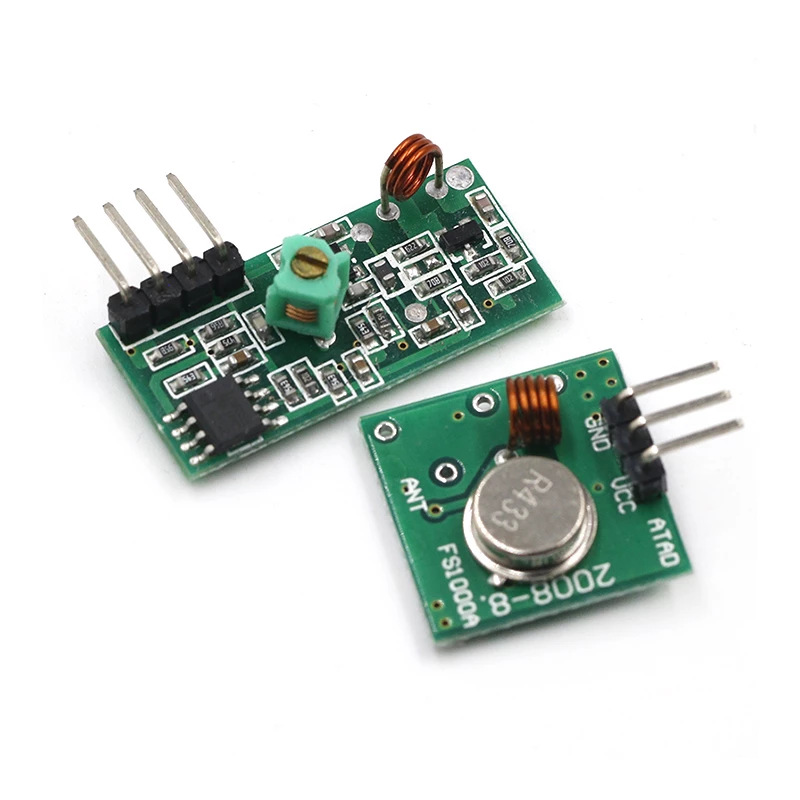

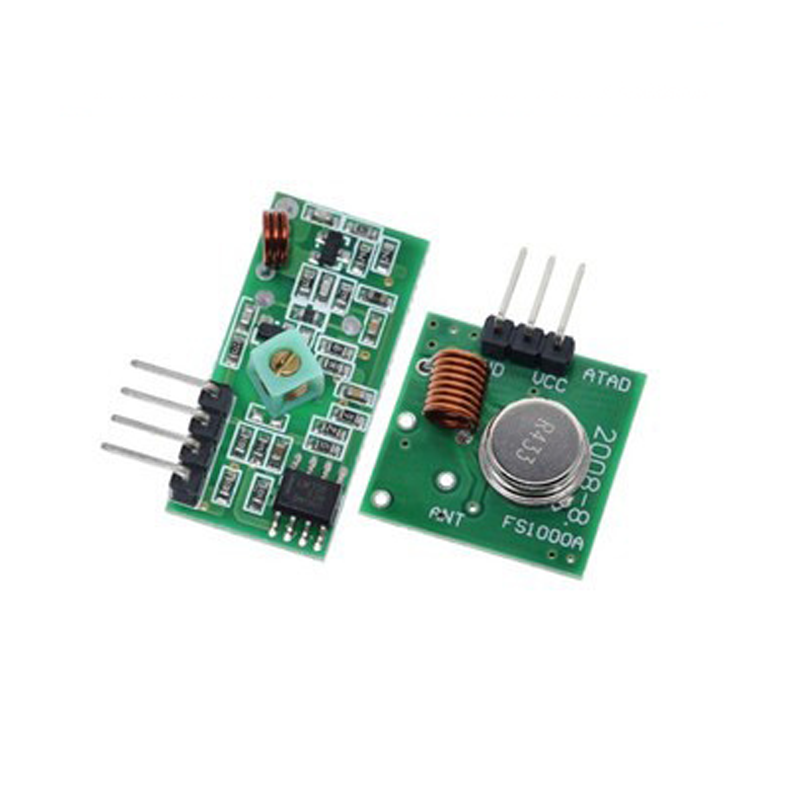

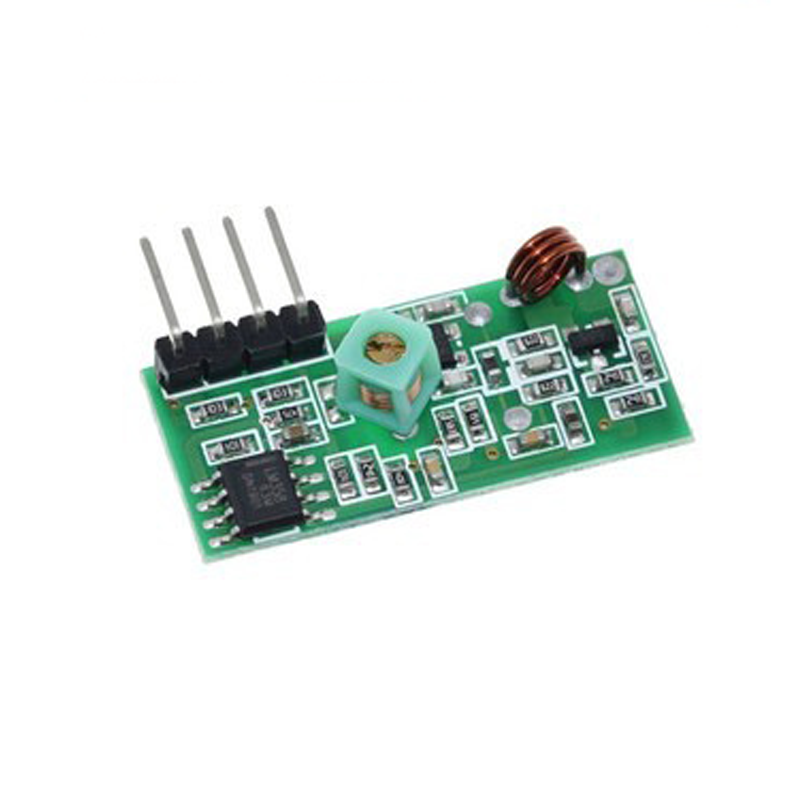

Receiver Module Technical Specifications
Product Model: MX-05V
Operating Voltage: DC 5V
Standby Current: 4mA
Receiving Frequency: 433.92MHz
Receiving Sensitivity: -105dBm
Dimensions: 30 × 14 × 7mm
External Antenna: 32cm single-core wire, coiled into a spiral shape

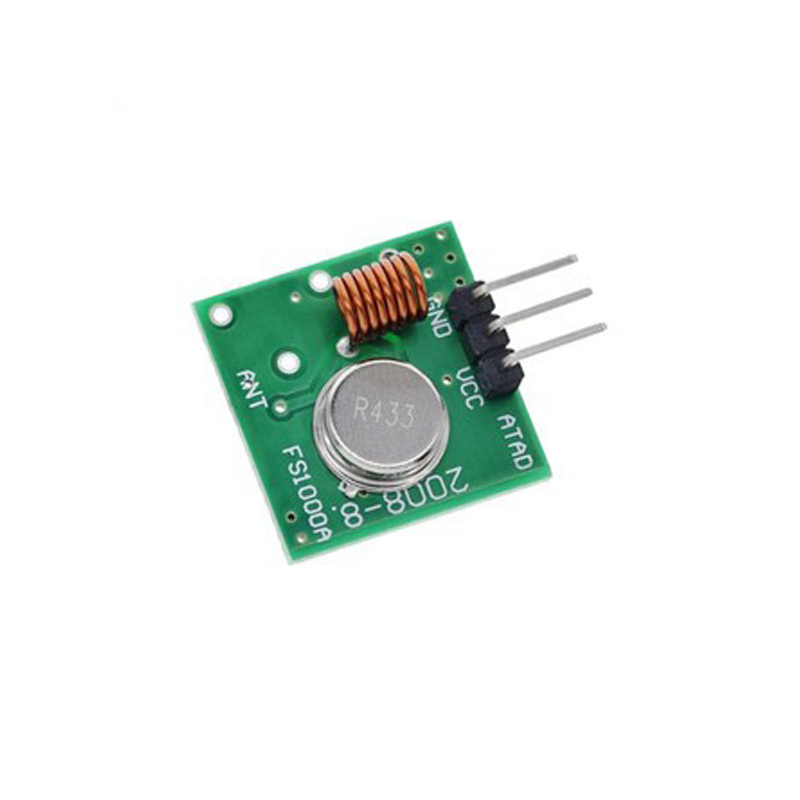

Transmitter Head Technical Specifications

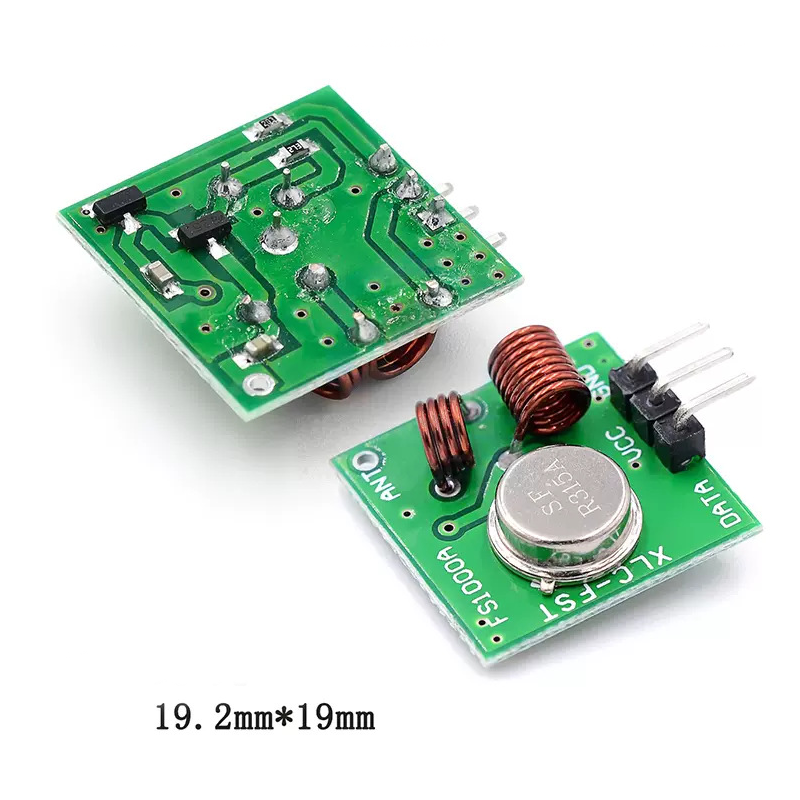

Transmitter Technical Specifications
Product Model: MX-FS-03V
Transmission Range: 20–200 metres (varies with voltage)
Operating Voltage: 3.5–12V
Dimensions: 19 × 19 mm
Operating Mode: AM
Transmission Rate: 4KB/s
Transmission Power: 10mW
Transmission Frequency: 433MHz
External Antenna: 25cm standard multi-core or single-core cable
Pin Configuration (left to right): (DATA; VCC; GND)

Application Environment
Remote control switches, receiver modules, motorcycles, automotive anti-theft products, domestic security systems, electric gates, roller shutters, windows, remote-controlled sockets, remote-controlled LED lighting, remote-controlled audio systems, remote-controlled electric gates, remote-controlled garage doors, remote-controlled sliding gates, remote-controlled roller shutters, sliding doors, remote-controlled door openers and closers, and other door control systems, remote-controlled curtains, alarm control panels and alarms, remote-controlled motorcycles, remote-controlled electric vehicles, remote-controlled MP3 players, etc.

Notes
The VCC voltage must match the module’s operating voltage, and adequate power filtering must be implemented: The antenna significantly impacts the module’s reception performance. A quarter-wave antenna is recommended, typically constructed from 50-ohm single-core wire. For 433 MHz operation, the antenna length should be approximately 17 cm. Antenna positioning also affects reception quality; during installation, ensure the antenna is as straight as possible and positioned away from shielding structures, high-voltage sources, and interference sources. During operation, the receiving frequency, decoding method, and oscillation resistor must match those of the transmitter.
