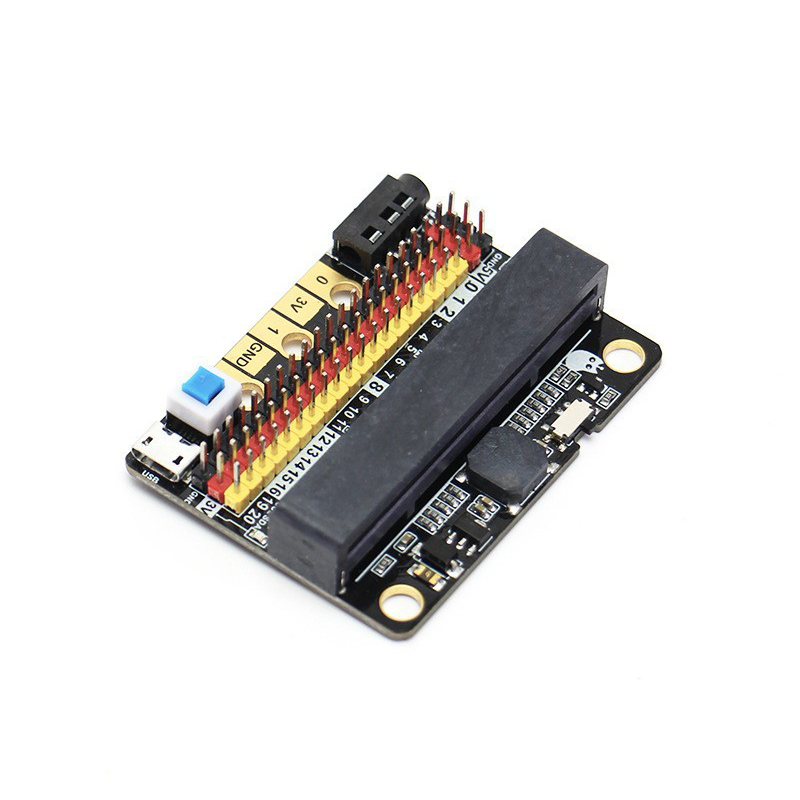

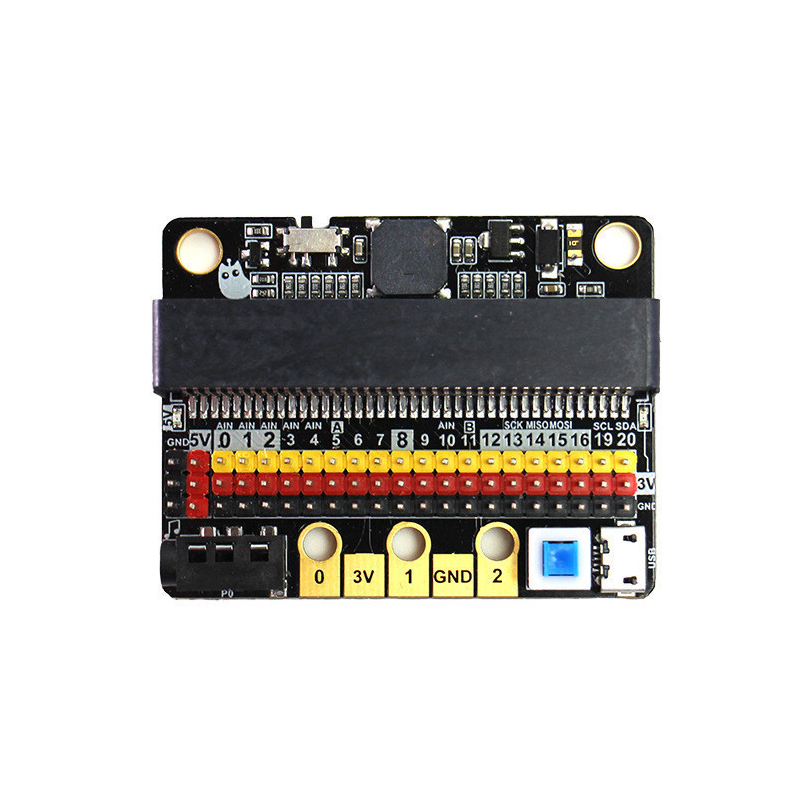

micro:bit Expansion Board IOBIT V2.0 micro:bit Breakout Adapter Board Connector

micro:bit Expansion Board IOBIT V2.0 micro:bit Breakout Adapter Board Connector - Image 2

micro:bit Expansion Board IOBIT V2.0 micro:bit Breakout Adapter Board Connector

$3.50

Category: Expansion board

Delivery:

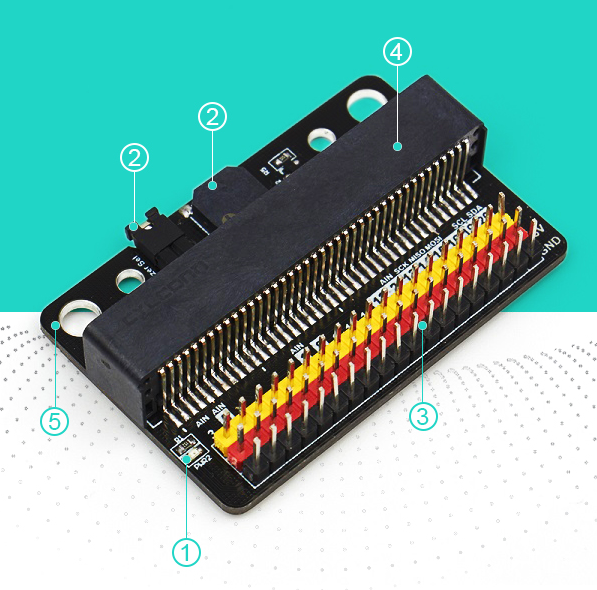

1. Power Indicator Light
When the Microbit’s USB port is connected to a data cable for power supply, the indicator light illuminates red; it remains unlit when no power is supplied.
2. PO Buzzer Jumper
The jumper for the IOBIT buzzer is inserted by default. Programming to emit sound can be achieved using the music section blocks in MakeCode. The device will not produce sound during normal power-up. The small black block beside the jumper is a passive surface-mount buzzer.
3. 3.3V IO Port
The yellow wire corresponds to the 3.3V pin, the red wire to the 3.3V power supply, and the black wire to the GND (ground) connection.
4. 40-Pin Microbit Horizontal Socket
A compact, space-saving socket design.
5. Board mounting holes and fixing holes are compatible with LEGO friction pins, spaced at 48mm intervals. The two innermost holes have a diameter of approximately 3.1mm and can be secured with standard M3 screws, spaced approximately 32mm apart.
